Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: KEDA
  • Model Number: K Modular
  • Material: Sandwich Panel
  • Use: House, Office, Sentry Box,Guard House, Shop, Toilet, Warehouse, Workshop,Plant, school,worker camp
  • Module: K=1820mm, P=950mm
  • H.S. Code: 94069000

Packaging & Delivery

Packaging Details Normal Packing knock down in customized packing way.
Delivery Time 7-15 days against down payment

Galvanized Low Cost Prefabricated House Modular Temporary Site Office

Product Description



Description of K Modular House

1) Cost saving & Comfortable;

2) Fast construction & Easy installation;

3) Long life span & Many times reusable;

4) Waterproof,Fireproof & Heat isulation;

5) Eco-friendly material ,no construction garbage caused;

6) Flexible layout to satisfy different requirements.



 Specification of K Modular House

Keda Light Steel Housing System Co.,Ltd
Material Detail:
No.ComponentSpecificationMaterial Thickness
1Ground Beam8#C steel2.0mm
2PillarDouble 8#C steel2.0mm
3Transverse Beamdouble 8#C steel+50×30 flat pipe2.0mm
4Fastigium Transverse beam8#C steel2.0mm
5Flooring Purlin8#C steel2.0mm
6Horizontal  Bracketangle iron2.0mm
7Roof "A" Shape Beam8#C steel2.0mm
8Roof  Fastigium "A" Shape Beam8#C steel2.0mm
9Roof Purlin8#C steel2.0mm
10Shelf Bracket8#C steel2.0mm
11Platform Bracket8#C steel2.0mm
12Platform Column Bracket50 round tube1.2mm
13Staircasepattern plate3.0mm
14Handrail30×30 square tube1.2mm
15Aislepattern plate3.0mm
16Balustrade30×30 square tube1.2mm
17Roof Tile830 type PU tile18mm
18External Wall Panel50-250mm EPS,PU,Rockwool or EPS Cement with double-side color steel sandwich panel0.326mm for color steel sheet
19Partition Wall PanelSame as External Wall Panel0.326mm for color steel sheet
20DoorSandwich panel or steel door870mm(W)  × 2100mm(H)
21WindowPVC sliding window1200mm(W) x 1000mm(H), 1748mm(W)  × 925mm(H)
22Canopy Frame8#C steel  2.0mm
23Canopy Frame Bracket25mm round tube2.0mm
24FlooringPlywood or PVC15mm
25paintingPowder Coat or Galvanized
Technical Paremeter
No.Description Specification
1Bearing Load30kg/square meters
2Wind Pressure0.45KN/square meters equal 10 grade
3Earthquake Resistance8 grade
4Temperature Resistance(-45°C) to 50 °C





Steel Structure Frame of K Modular House



 Interior View of K Modular House

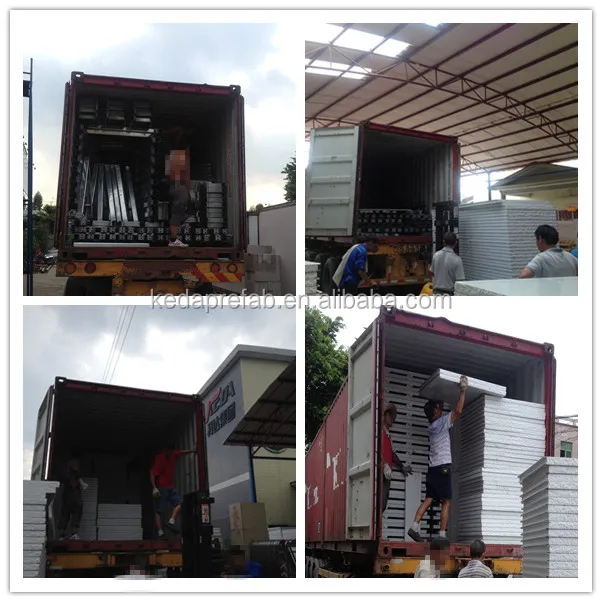

Packaging & Shipping
Referenced Layout



Install & Assemble





Installation guidance: we will send a assemble manual which will be a CD with installation step flash. Meanwhile technical guidance adviser outputting is acceptable and charged. Buyer should pay the air tickets come-and-go, the local transportation, the food and accommodation, and the salary of USD150 per man per day.

Referenced Case
